Raymond's MC30 Page

I have scanned the original owner's manual for my McIntosh MC30 amplifiers.
I got the pair of amps about 20 years ago, including the manuals and the warranty cards.

Let me know if the scans are too large to be of use to you and I will shrink the file sizes.  I have a fast
internet connection and I can't tell how they work over a modem.

Click on the hyperlinks to view a larger image
or
Click here for a 3.5Mb full-color version

If these don't work for you, email me and I'll be happy to return a higher resolution scan by email.

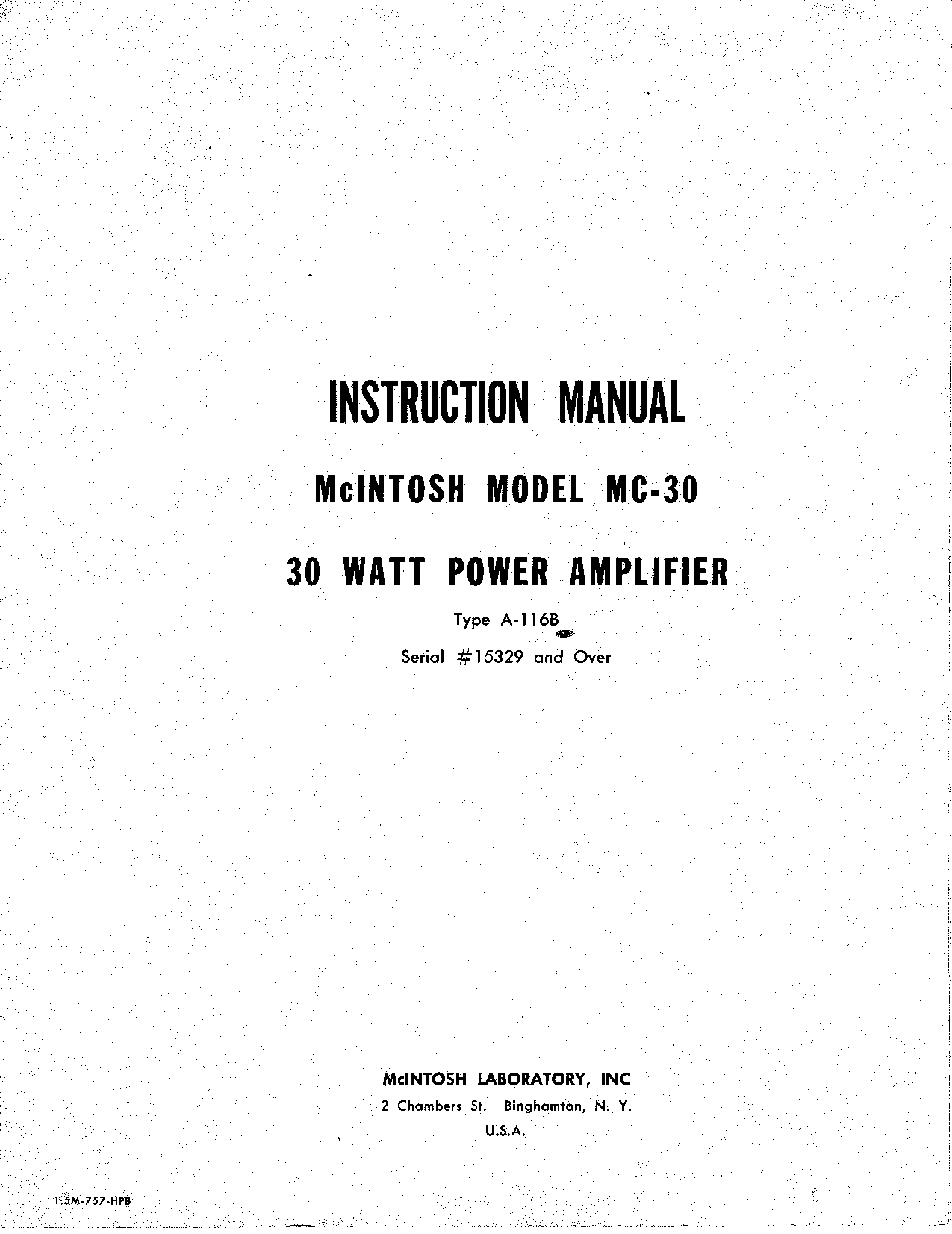

Cover Page

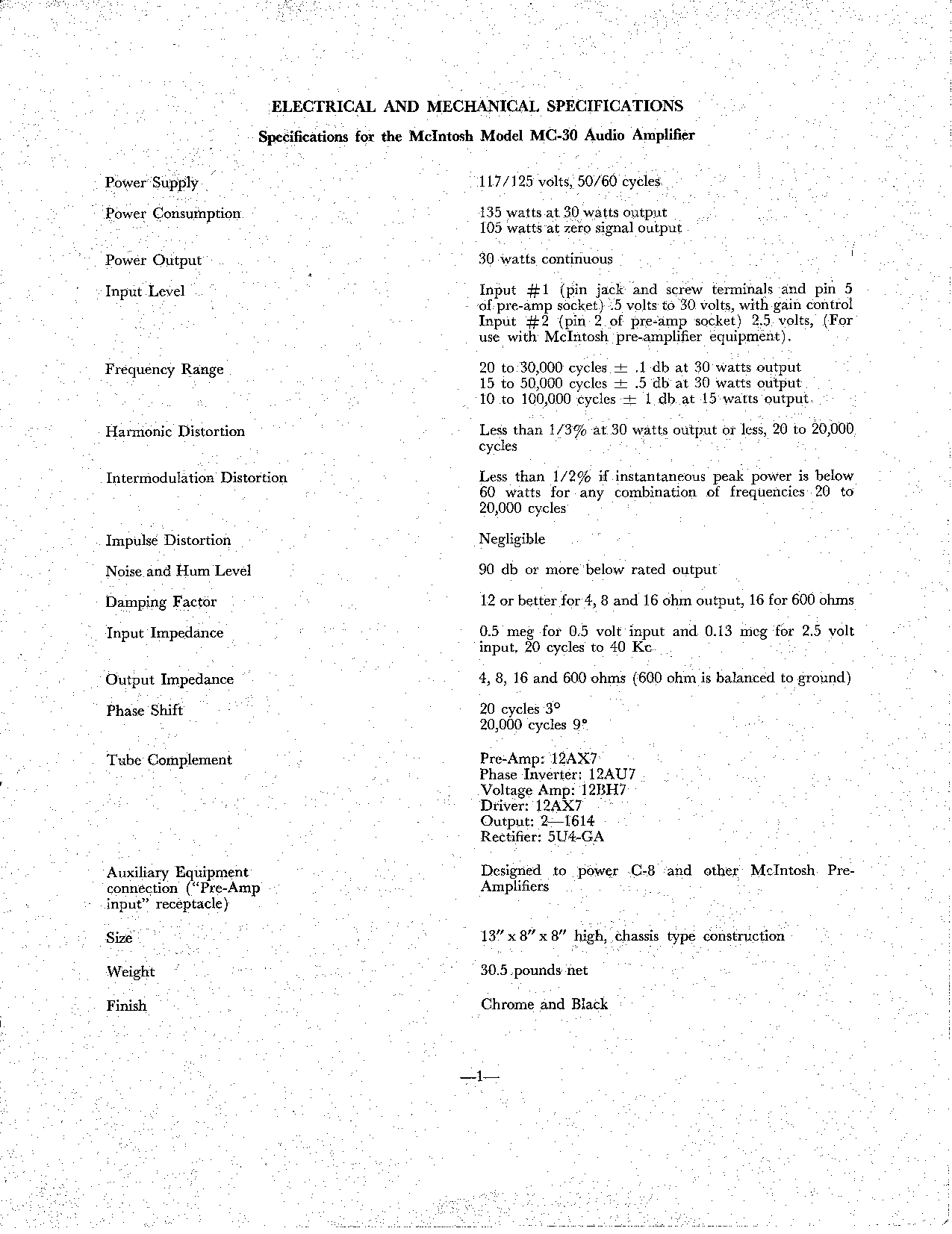

Page 1 - Specifications

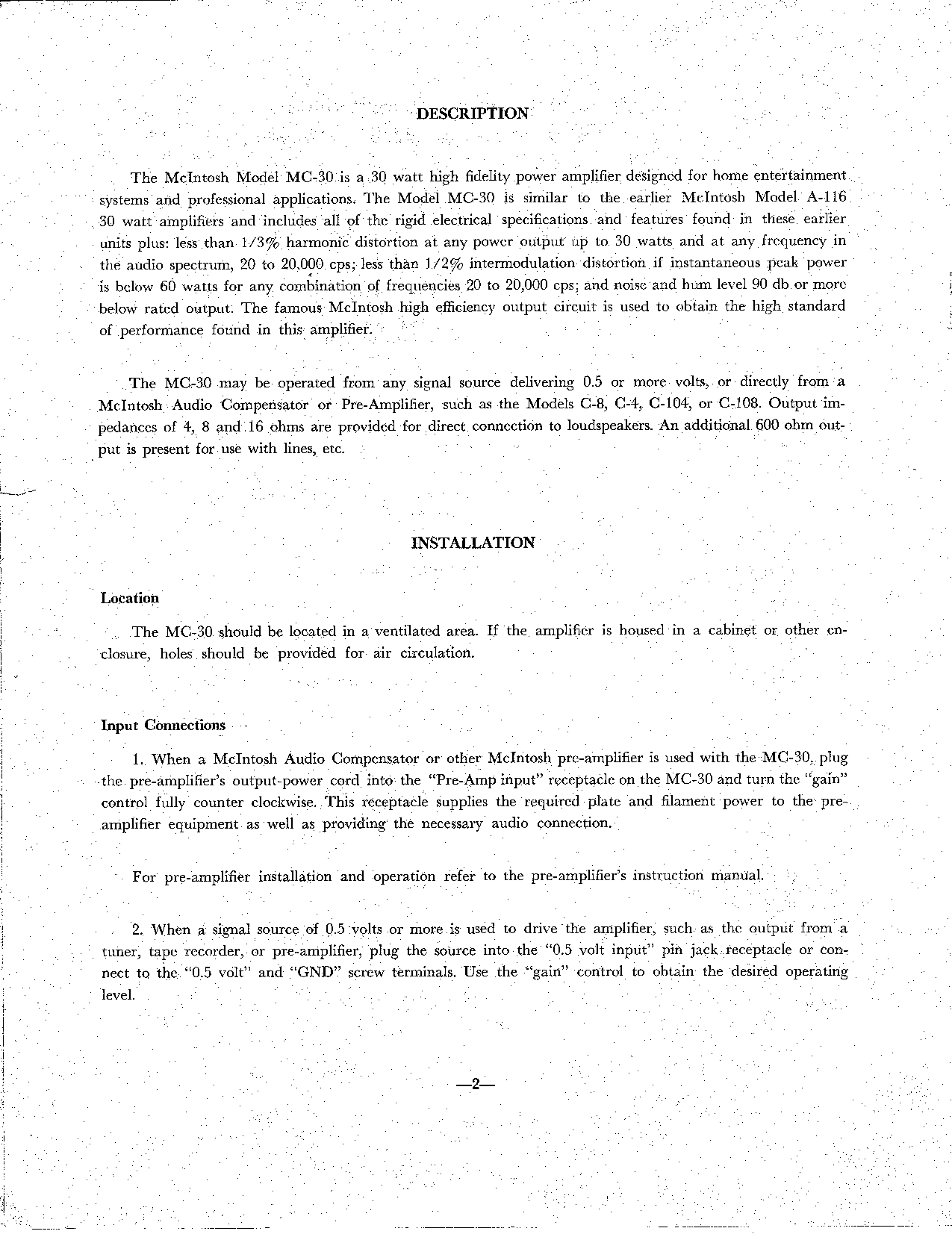

Page 2. - Description, Installation

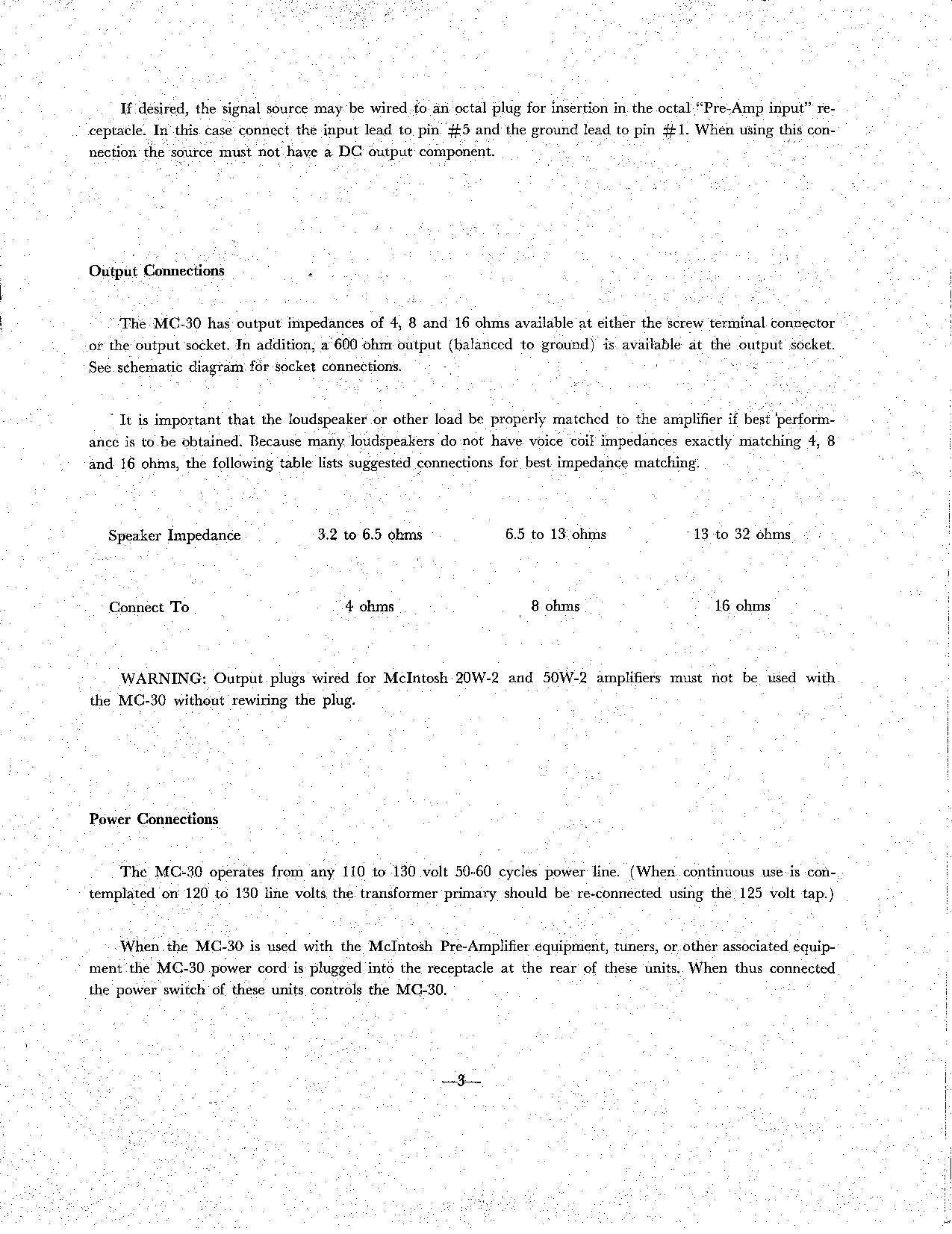

Page 3. - Electrical Connections

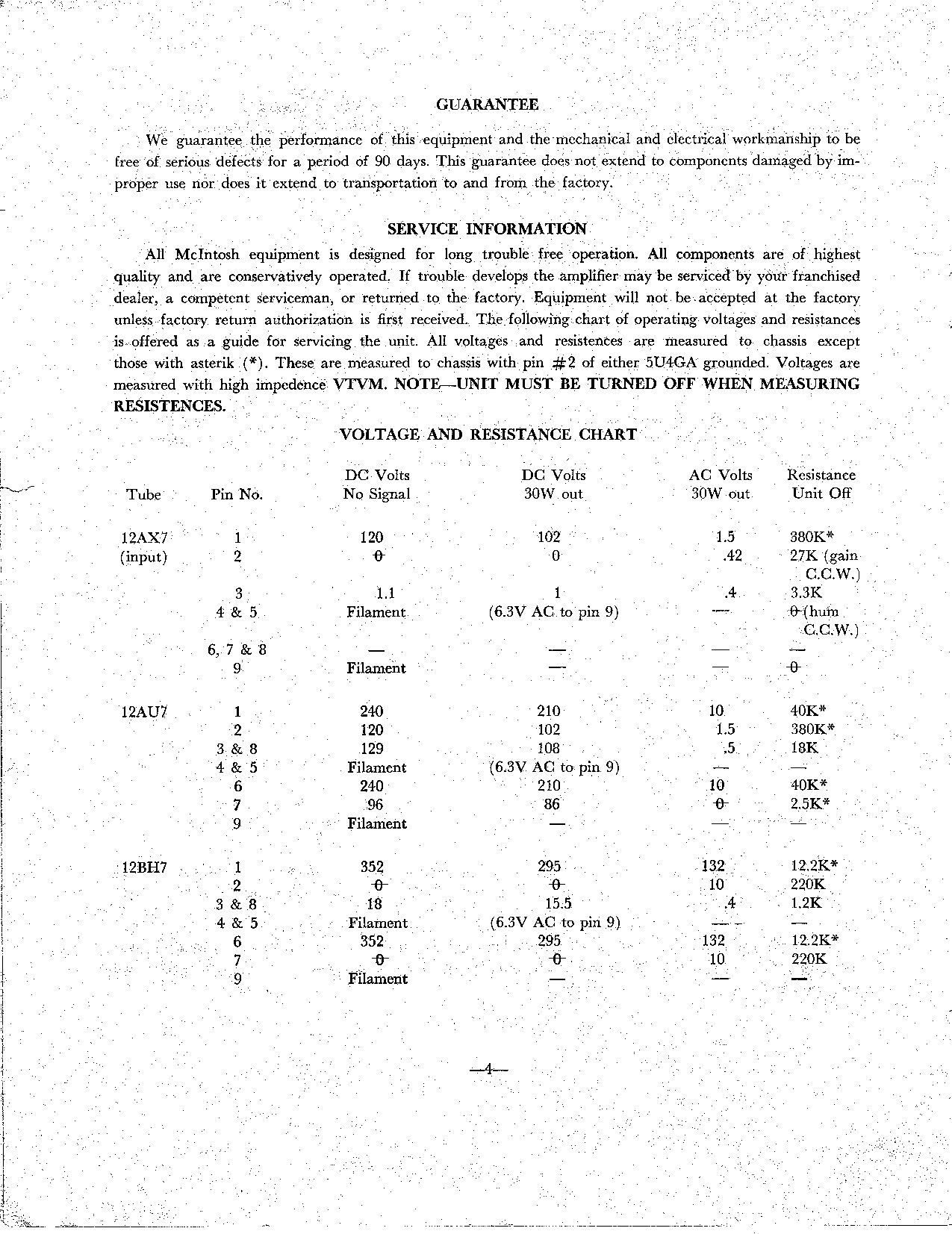

Page 4. - Service Info, Voltage & Resistance Chart

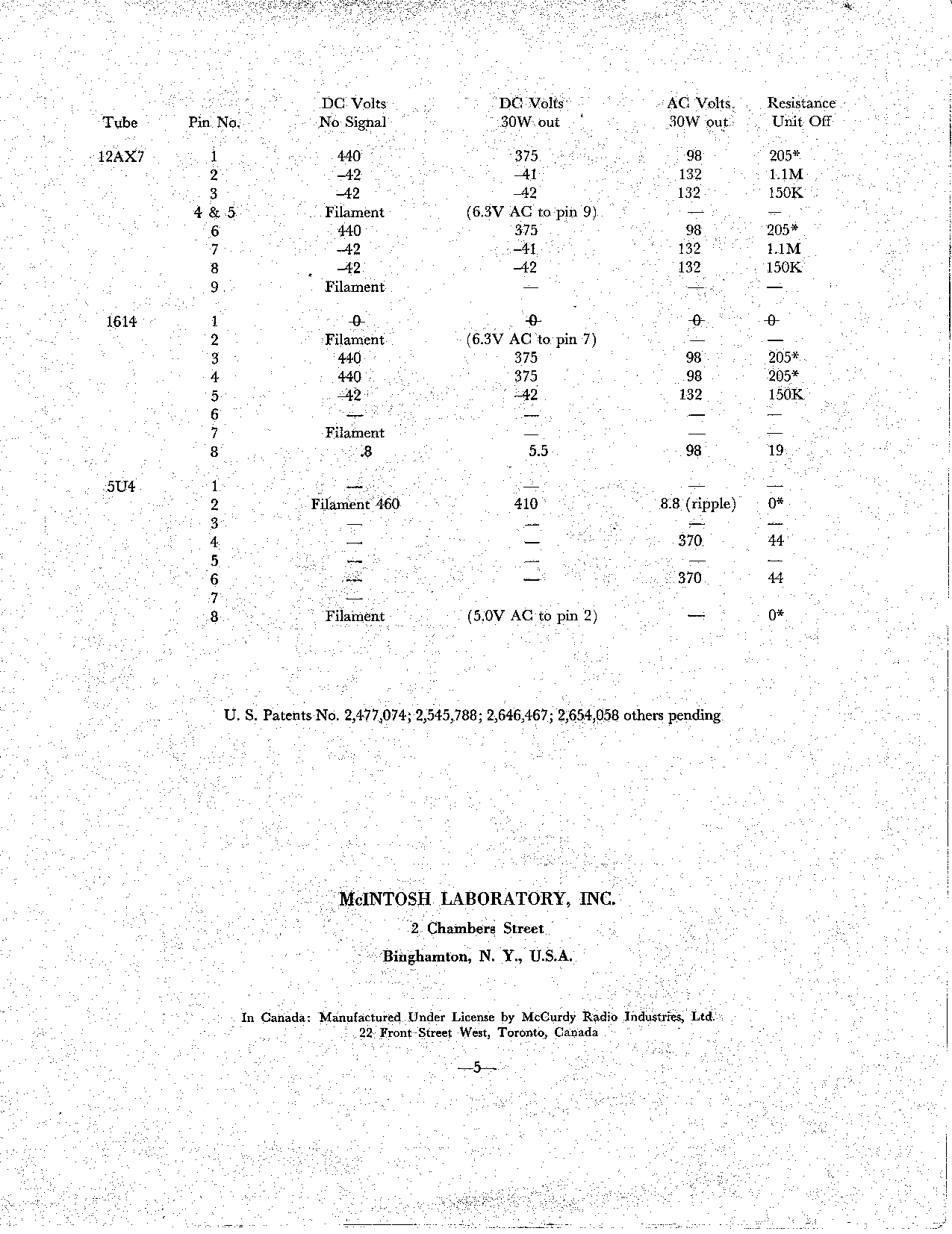

Page 5. - Voltage & Resistance Chart (continued)

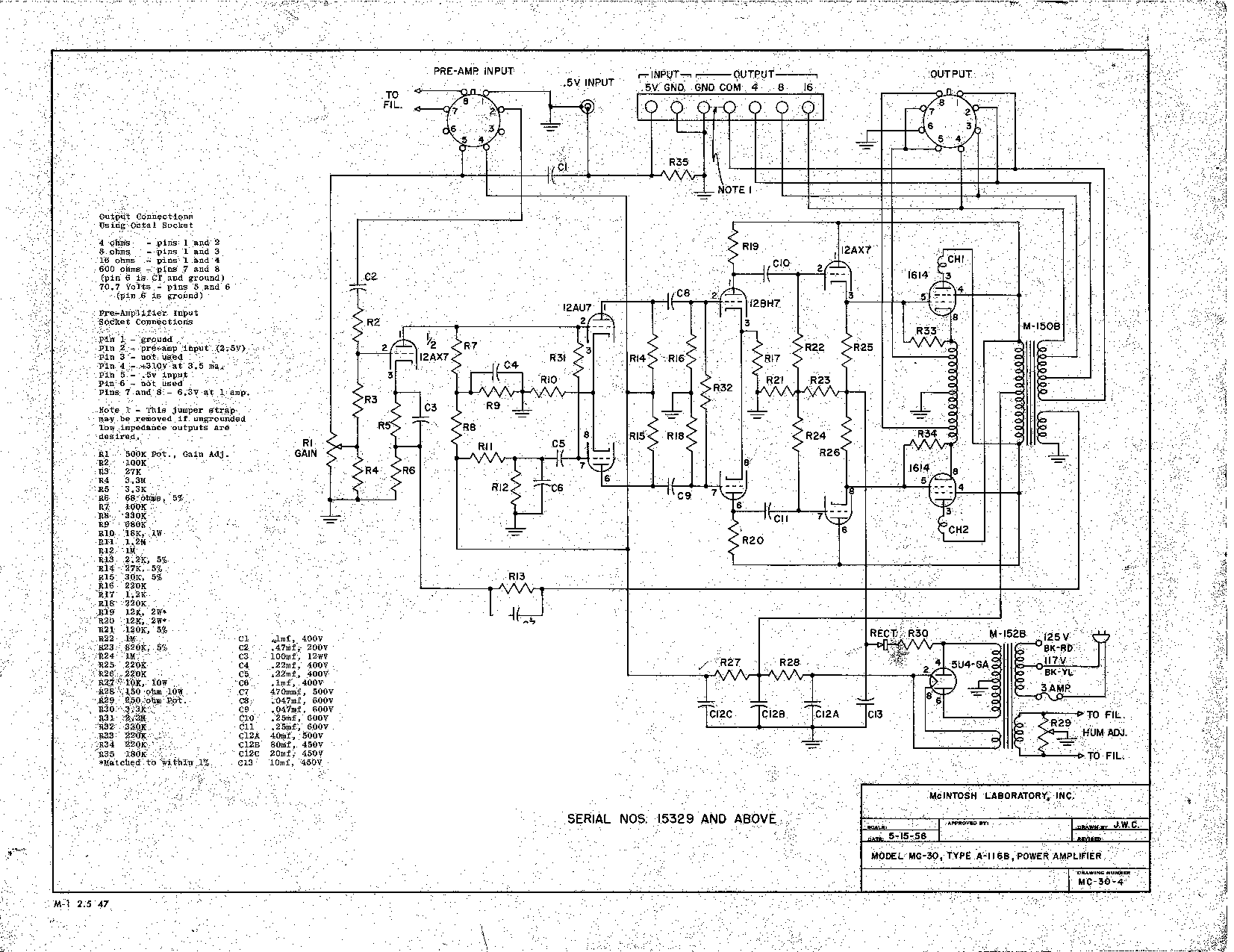

Schematic
